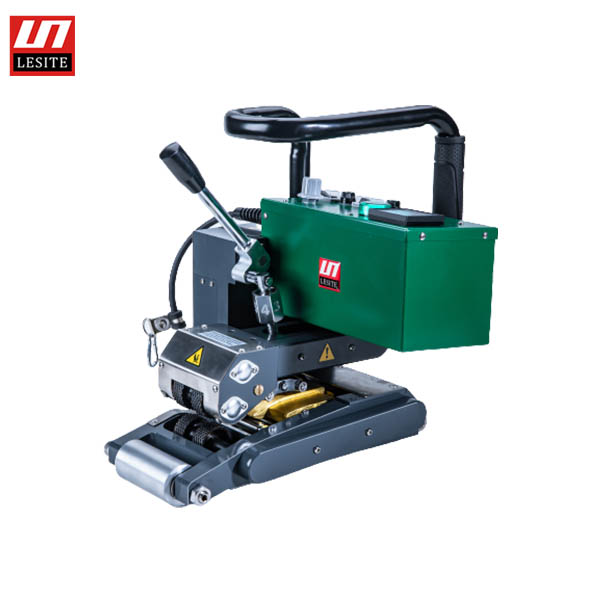

Heavy Geographically Heated Wedge Welder Model LST900
Advantage
Closed loop control system
The operation is simple and intuitive, heating temperature closed-loop control, on-site working voltage display, real-time monitoring of working parameters.
High torque transmission system
The high-torque motor adopts a precise two-group transmission mechanism, which can easily realize large-slope crawling and relatively harsh construction environment.
Pressure regulation system
The advanced T-shaped cantilever head design and pressure adjustment mechanism ensure that the left and right weld bead pressures are balanced, the weld seam is uniform, and the welding pressure is continuously adjustable.
roller
Special steel pressure roller, strong pressure, non-slip, durable
Newly upgraded heating system
The hot wedge structure is stronger, can increase the contact area with the welding material, and increase the welding efficiency by 30%.
| Model | LST900 |
| Rated Voltage | 230V/120V |
| Rated Power | 1800W/1650W |
| Frequency | 50/60HZ |
| Heating Temperature | 50~450℃ |
| Welding Speed | 1.0-5m/min |
| Material Thickness Welded | 1.0mm-3.0mm(single layer) |
| Seam Width | 15mm*2,Interior Cavity 15mm |
| Weld Strength | ≥85% material |
| Overlap Width | 12cm |
| Digital Display | temperature display |
| Welding pressure | 100-1000N |
| Body weight | 13kg |
| Warranty | 1 year |
HDPE (2.0mm) geomembrane, solid waste landfill
LST900
